    Vendor
    Kendall Howard
    Regular price
    $799.00
    Sale price{
    $744.00
    Shipping calculated at checkout.

    • Description
    • Price Guaranty
    • Shipping
    The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!

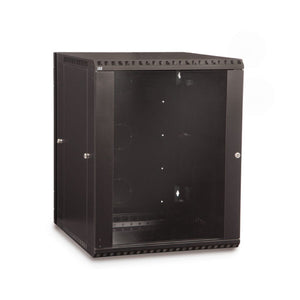

    • Includes one locking tempered glass door

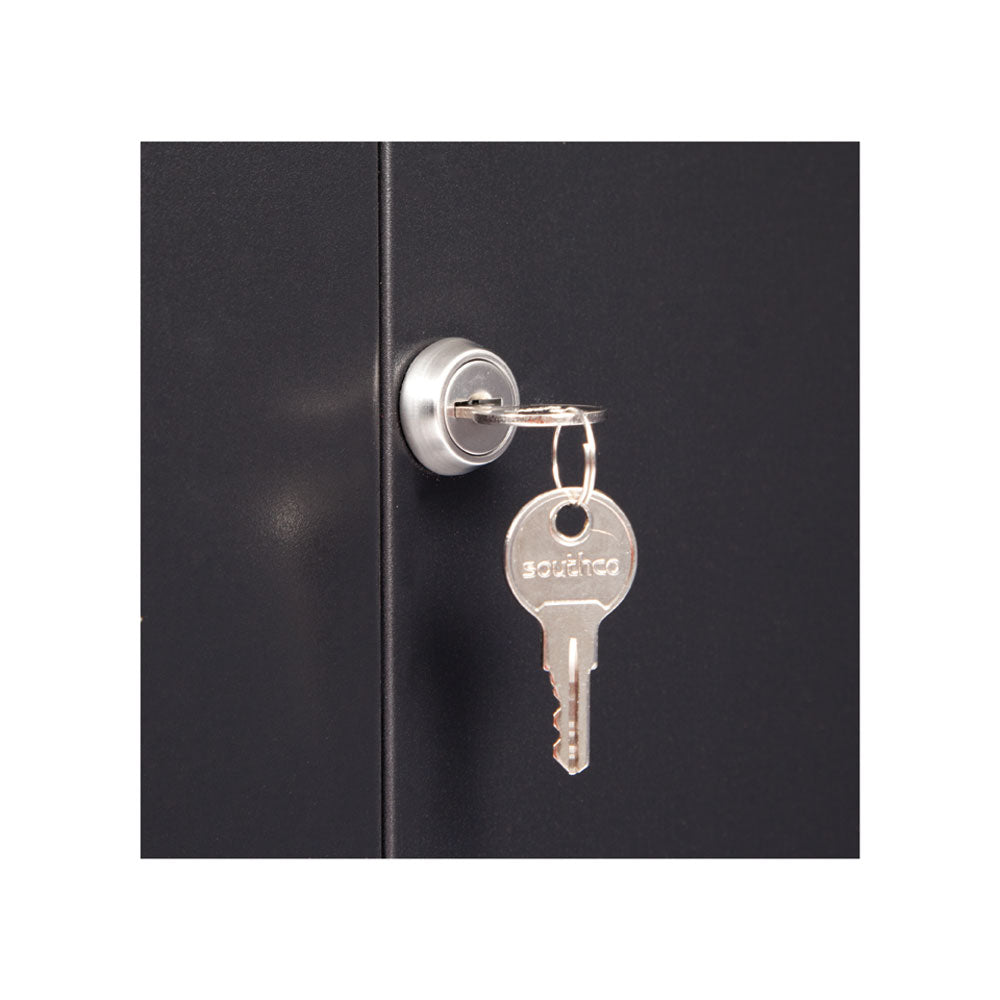

    • Locking side panels
    • 150 lb. weight capacity
    • One set of cage nut style mounting rails
    • 90 degree swing-out
    • Mounting depth: 22.5"
    • 19" EIA compliant
    • Made in the USA
    • 5-Year Limited Warranty
    Features
    Economical Design

    Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.

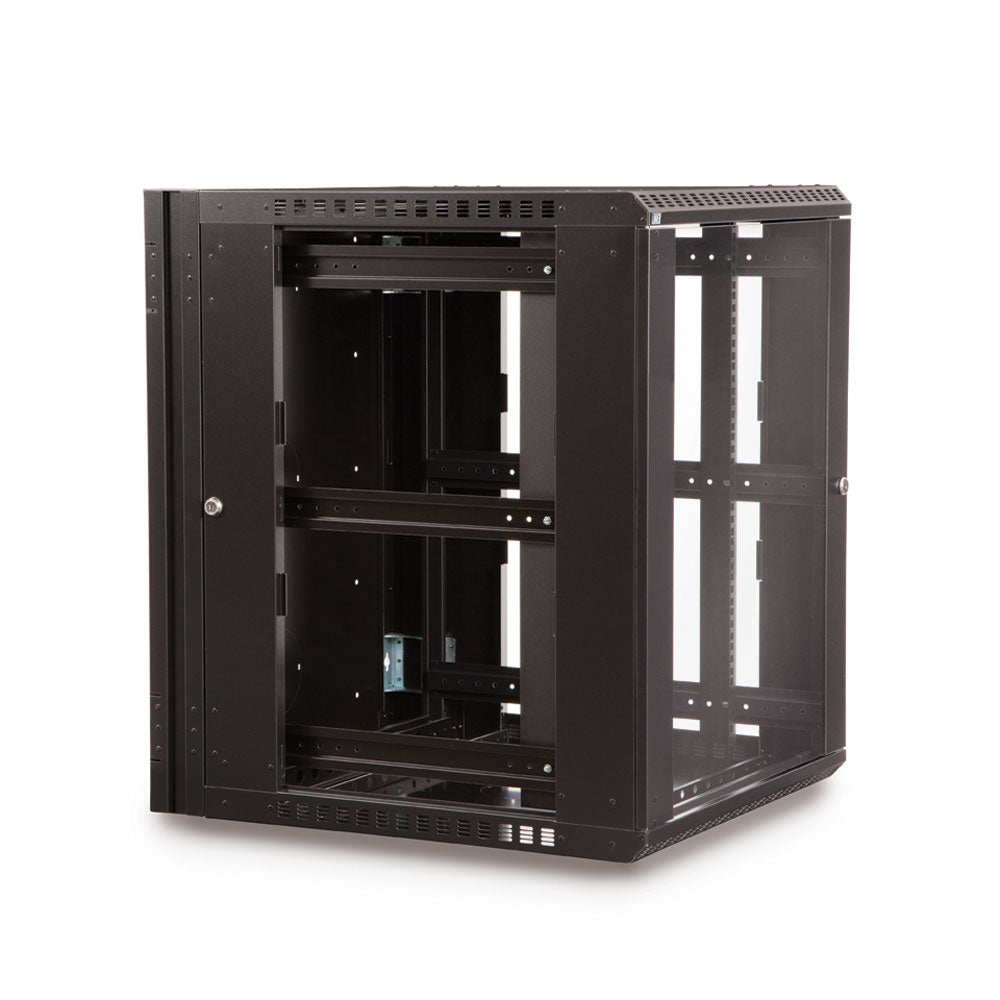

    90 Degree Swing-Out

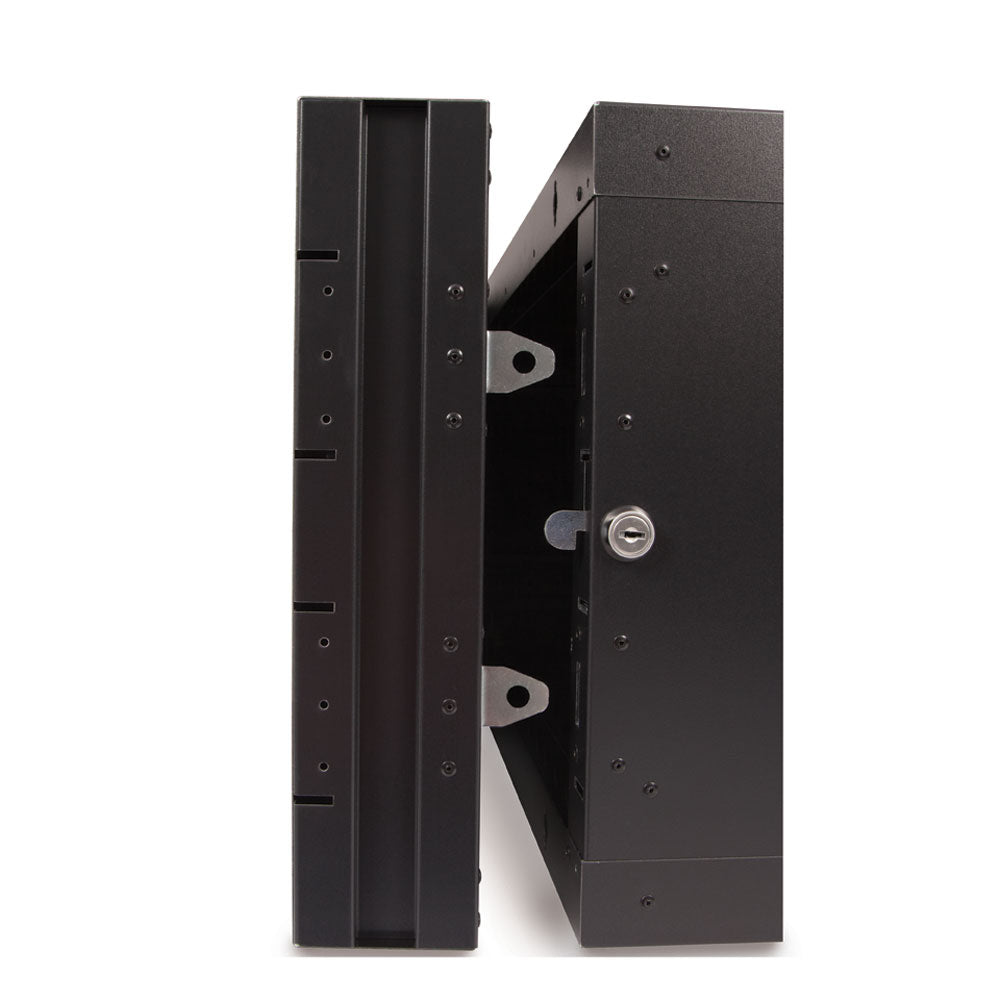

    Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables.

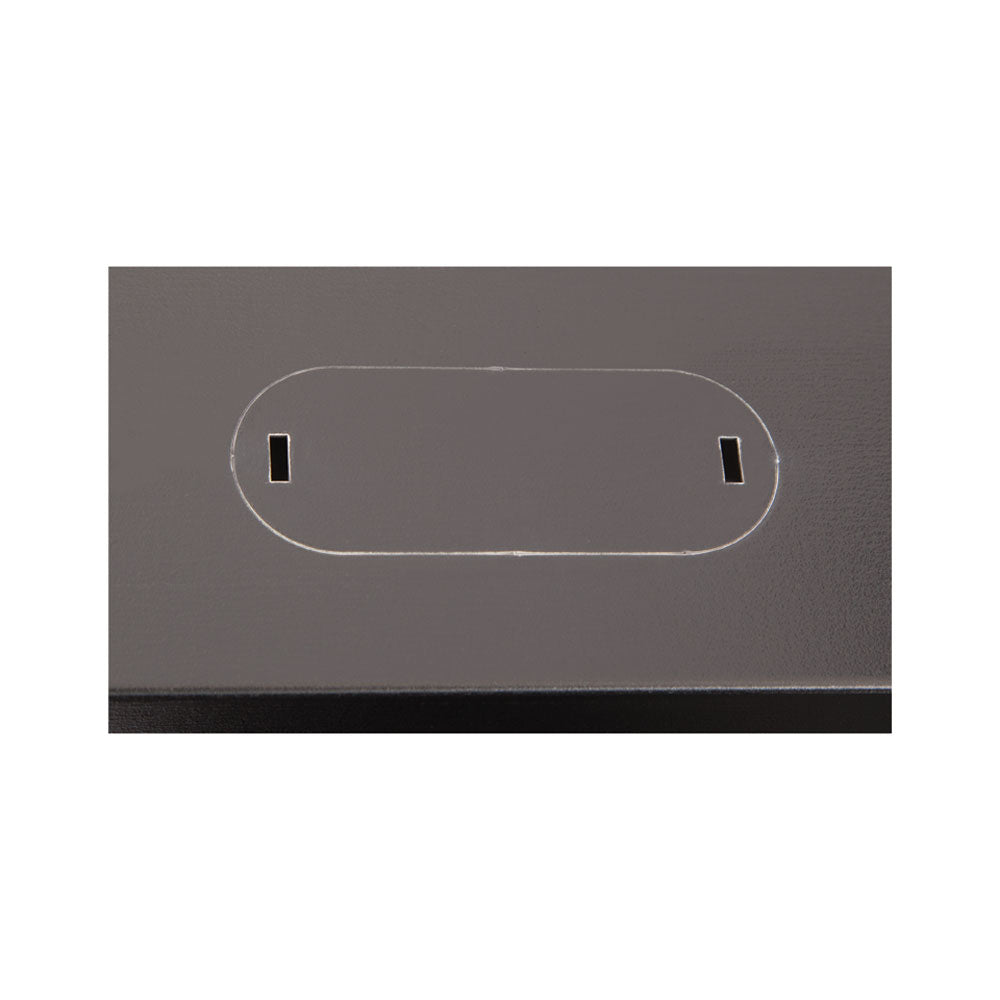

    Numerous Laser Knockouts

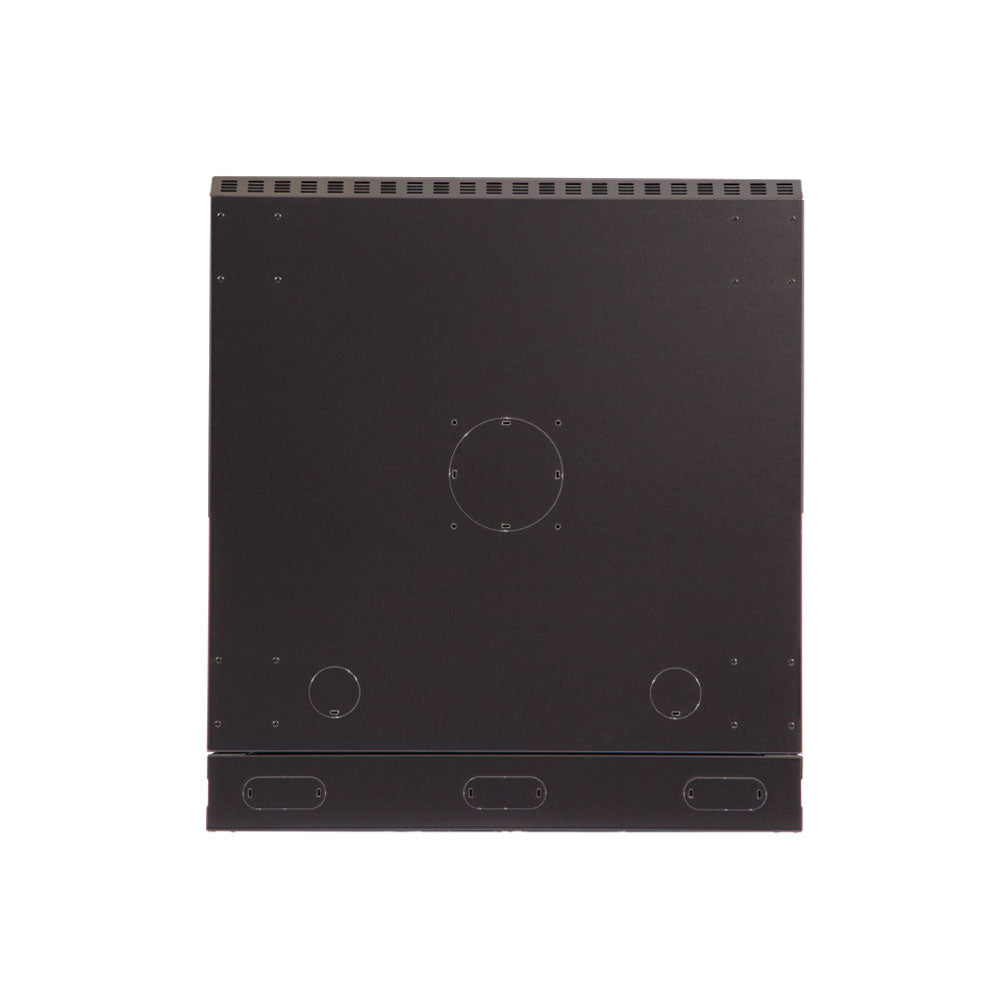

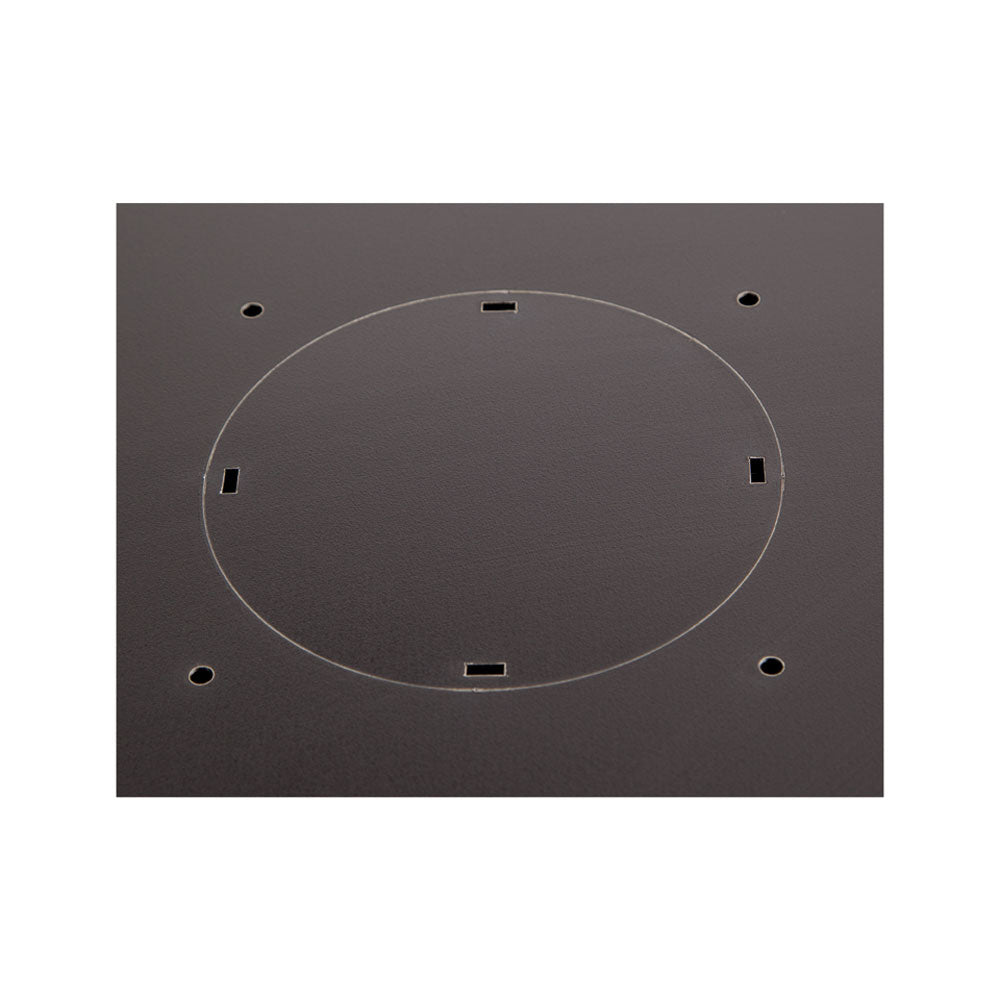

    Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.

    Adjustable Rails

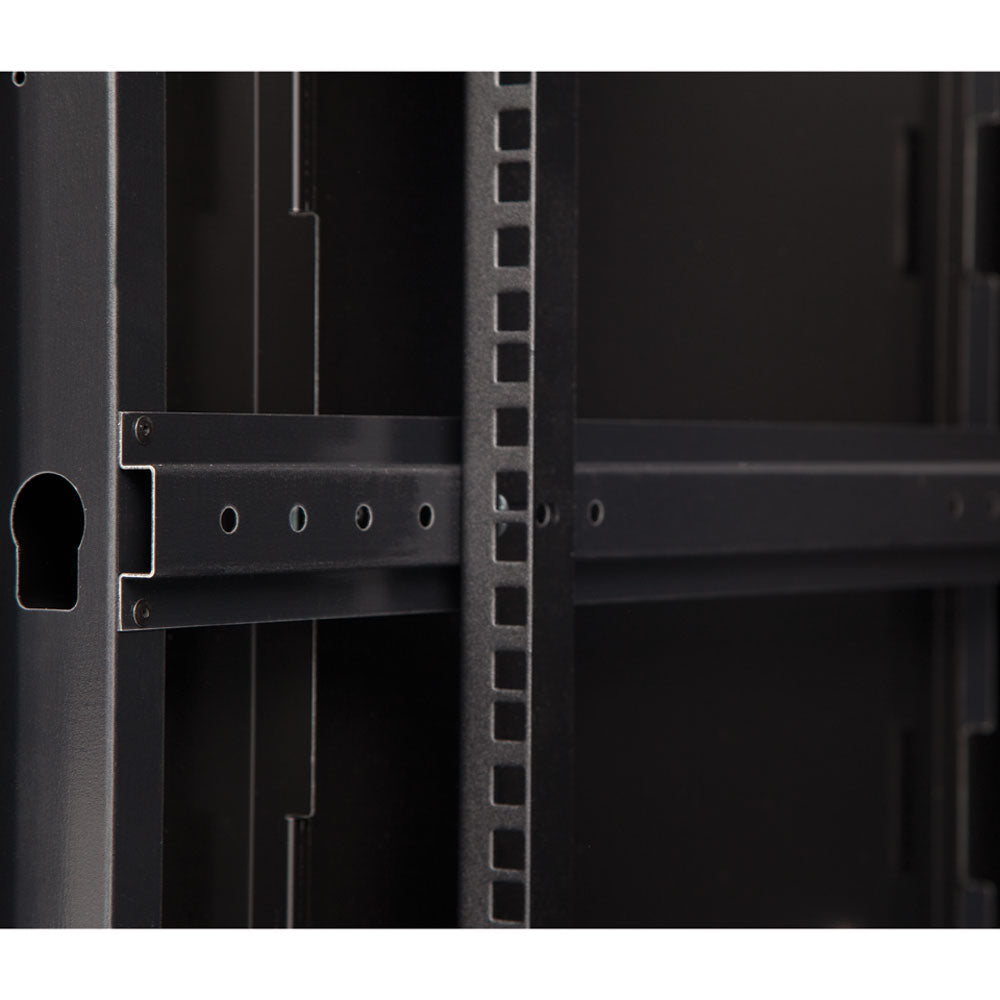

    The included set of cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

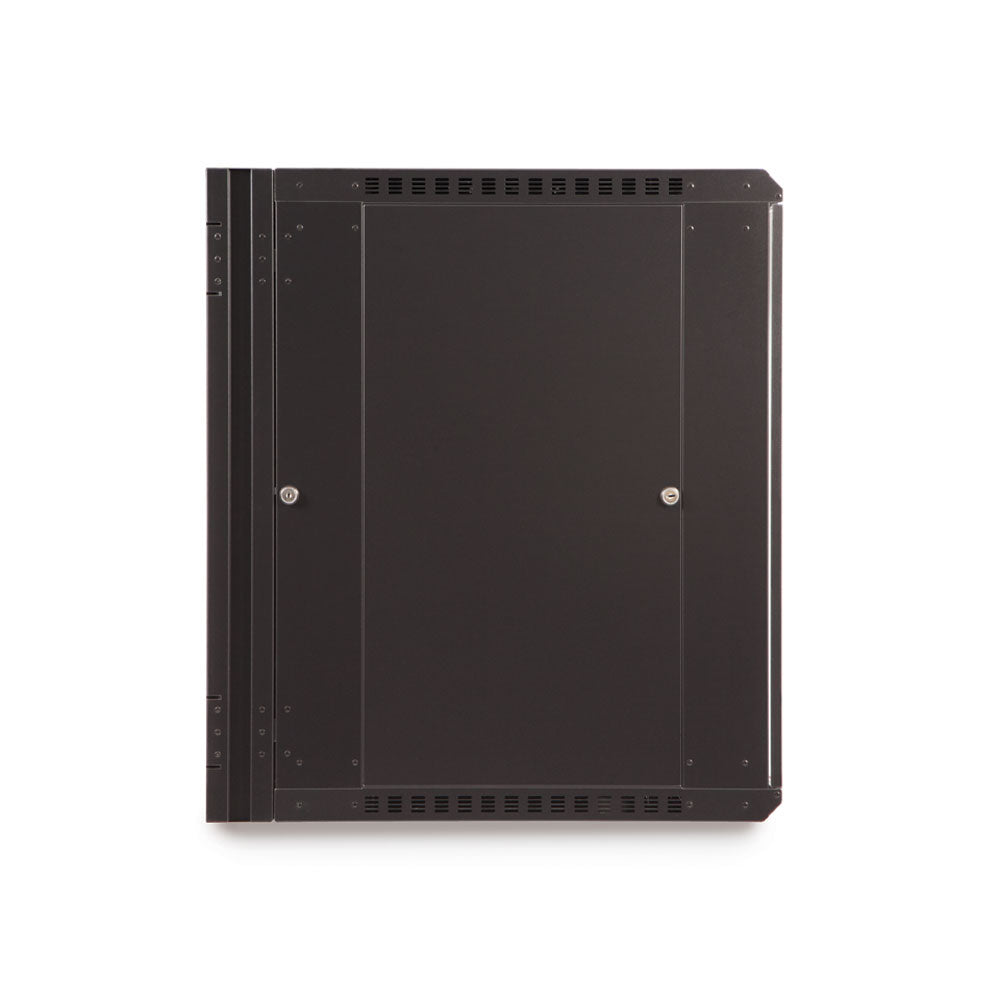

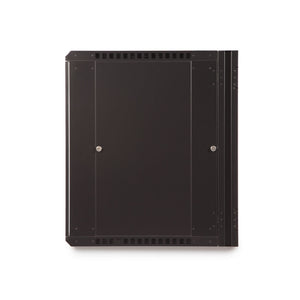

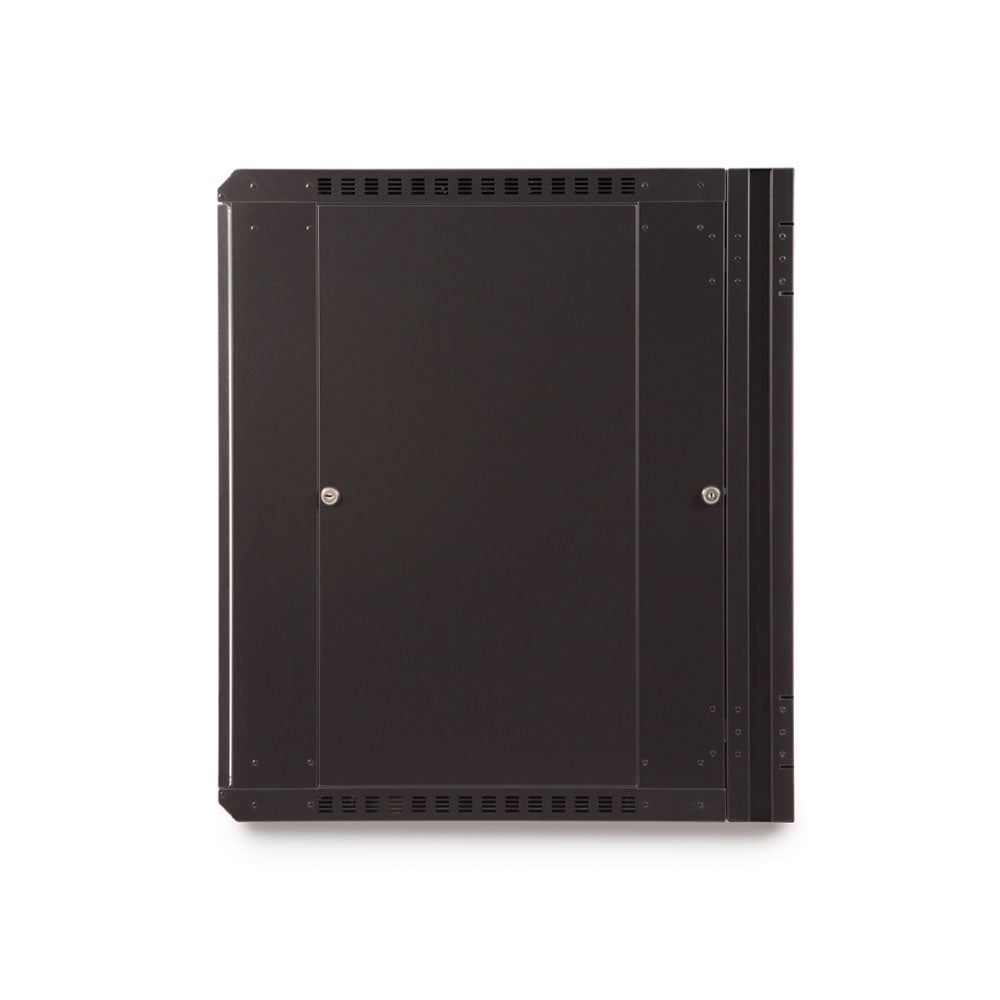

    Removable Side Panels

    Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

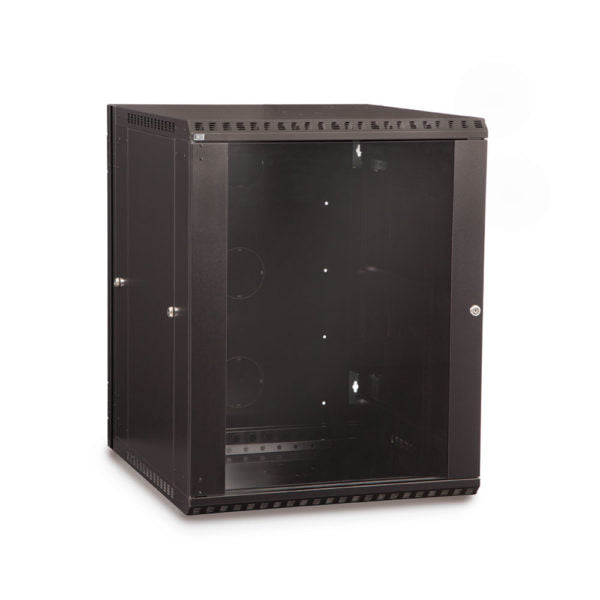

    Reversible Glass Door

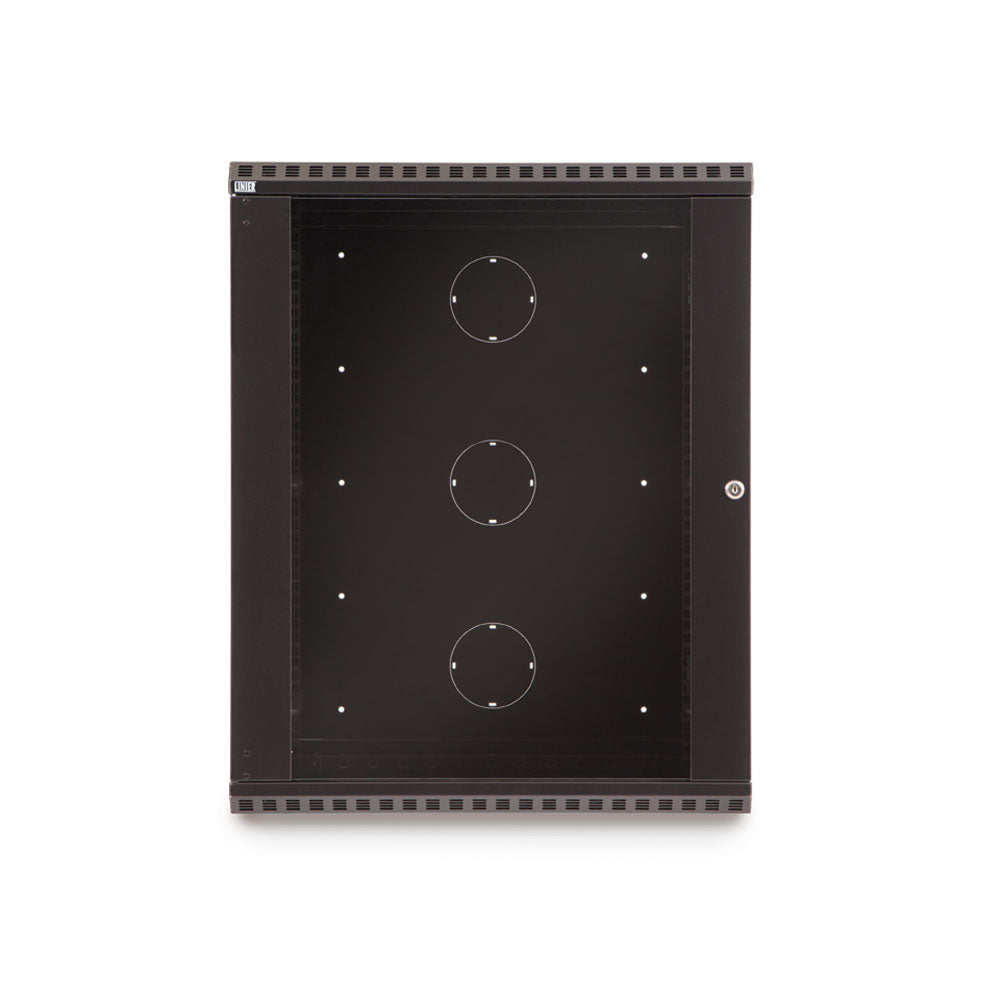

    Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The glass door allows you to monitor your network system.

    Specifications
    Part Number 3130-3-001-15
    Width 23.50"
    Depth 26.64" (Usable 22.50")
    Height 29.96"
    Weight 77.00 lbs.

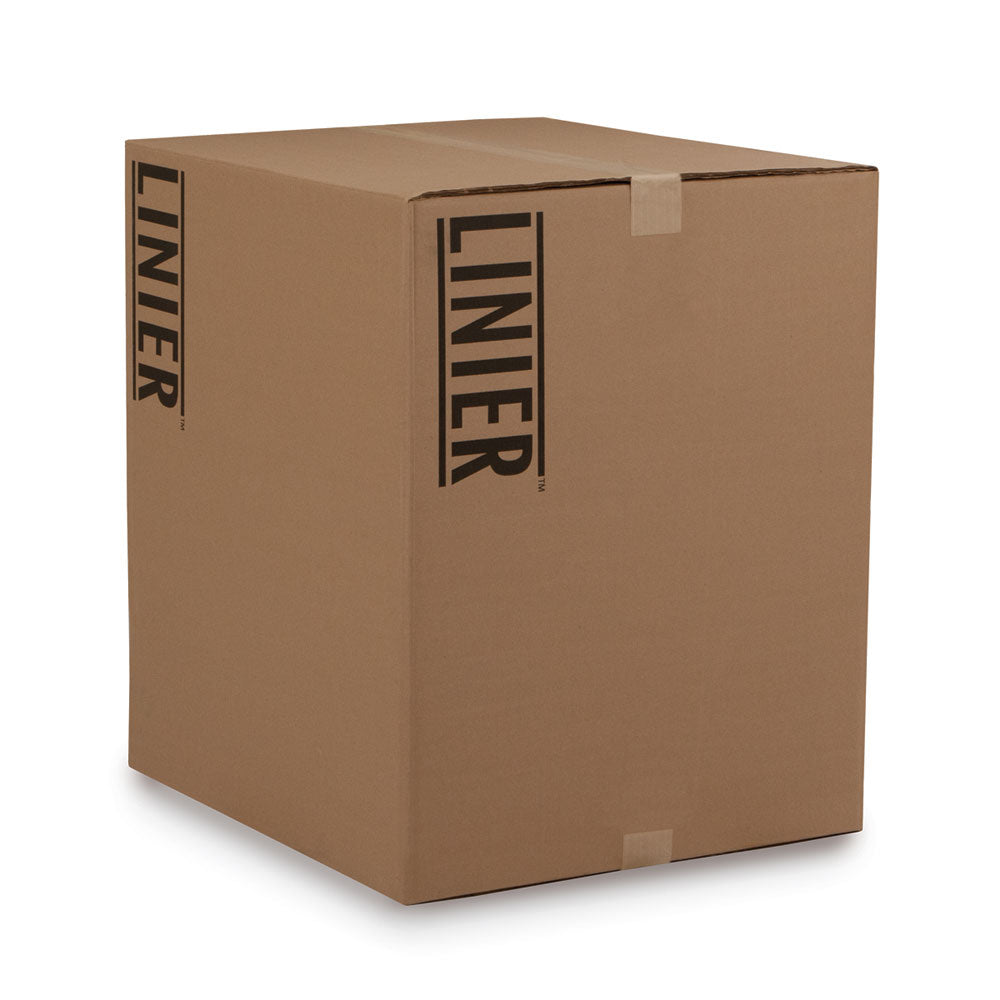

    Shipping Dimensions 29" L x 31" W x 36" H
    Material(s) CRS (Cold Rolled Steel)
    Color/Finish Medium Texture Black
    UPC 879447001747
    Warranty 5-Year Limited Warranty
    Shipping Method LTL Freight

    What's in the Box
    Item Quantity
    15U LINIER Swing- Out Wall Mount Cabinet - Glass Door 1
    Hardware Included 1
    Set of Cage Nut Style Mounting Rails 1
    10-32 Rack Screws 24
    10-32 Cage Nuts 24

    Resources
    Title Type Date Version File Size
    15U LINIER® Swing-Out Wall Mount Cabinet - Glass Door (3130-3-001-15) Data Sheet Data Sheet 05/19 1.0 126.92 KB Download
    15U LINIER® Swing-Out Wall Mount Cabinet - Glass Door (3130-3-001-15) Instructions Instructions 10/21 1 483.42 KB Download
    3130-3-001-15.STEP 3D CAD 10/20 1 12.48 MB Download
    Wallmount Swing-Out Cut Sheet Cut Sheet 01/21 1 468.82 KB Download
