Draper Ultimate Access E [16:10] Electric Retractable Projection Screen 113" (60" x 96")

Introducing the Draper Ultimate Access E [16:10] Electric Retractable Projection Screen in the size of 113 inches (60" x 96"). This state-of-the-art projection screen combines cutting-edge technology with elegant design to provide you with the ultimate visual experience.

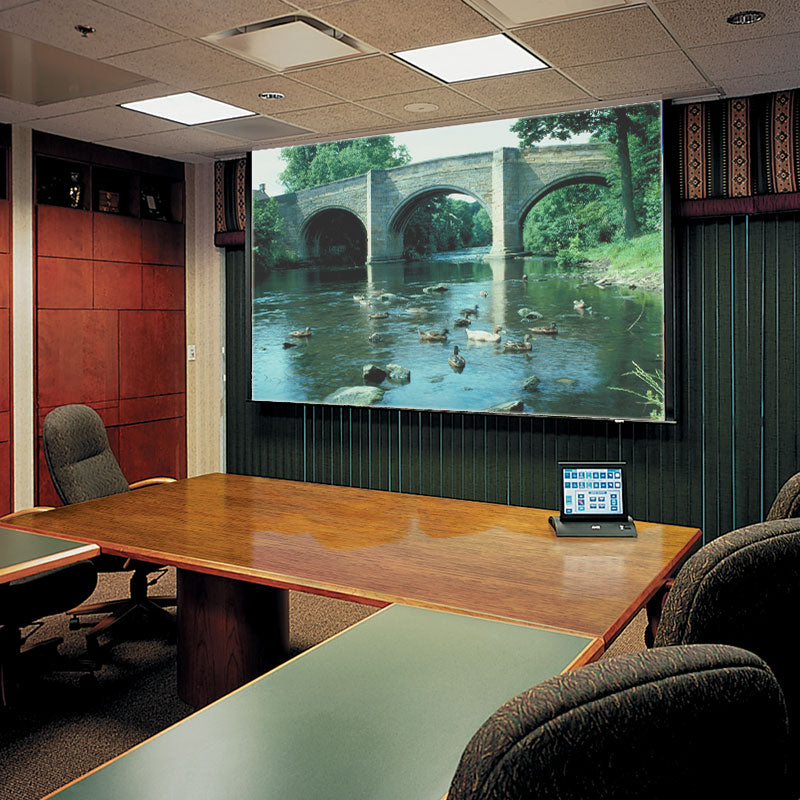

The Draper Ultimate Access E features a sleek and durable casing that houses the motorized retractable screen. With its low-profile design, the screen seamlessly blends into any environment, whether it's a home theater, conference room, or educational setting.

The screen boasts a 16:10 aspect ratio, which is ideal for presentations, movies, and widescreen content. The generous viewing area of 113 inches ensures that every detail is displayed with exceptional clarity and vibrant colors, creating an immersive visual spectacle for your audience.

Thanks to its electric motorized operation, raising and lowering the screen is effortless. With a simple touch of a button, the screen smoothly descends from its concealed housing, ready to deliver stunning visuals. When not in use, it retracts back into the casing, keeping it protected and out of sight.

The Draper Ultimate Access E projection screen is engineered with high-quality materials to ensure superior image reproduction. It features a tensioning system that keeps the screen surface flat, resulting in a seamless and distortion-free image. The screen surface is designed to maximize brightness, contrast, and viewing angles, ensuring excellent visibility from various positions in the room.

Installation is hassle-free with multiple mounting options available. Whether you prefer ceiling or wall mounting, the Draper Ultimate Access E provides flexibility to suit your specific needs. The included remote control allows for convenient operation from anywhere in the room, adding to the overall user-friendly experience.

In summary, the Draper Ultimate Access E [16:10] Electric Retractable Projection Screen in the size of 113 inches (60" x 96") offers a perfect combination of functionality and aesthetics. Its motorized retractable design, superior image quality, and versatile installation options make it an ideal choice for any space where impressive visuals are desired. Elevate your presentations, movie nights, and entertainment experiences with the Draper Ultimate Access E.

Product Specs

•  Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 12' (366 cm) wide, depending on surface selection.

•  NTSC, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens.

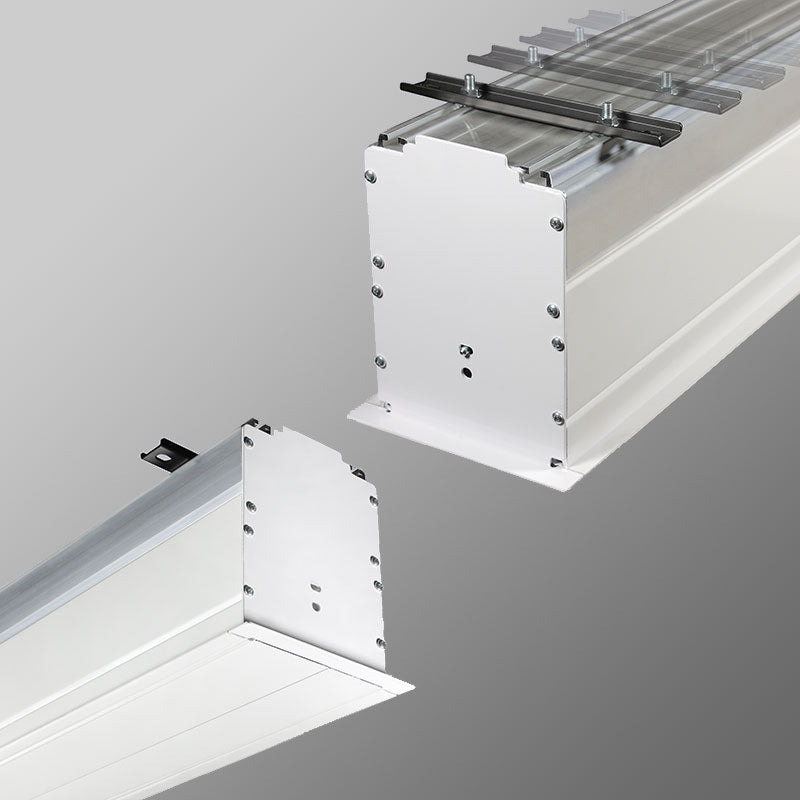

•  Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.

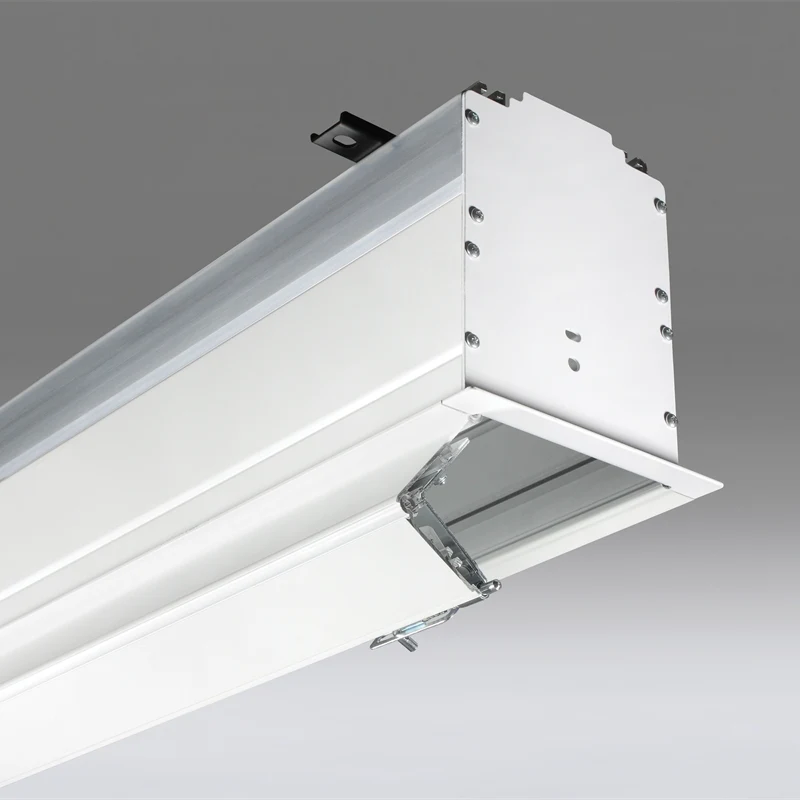

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

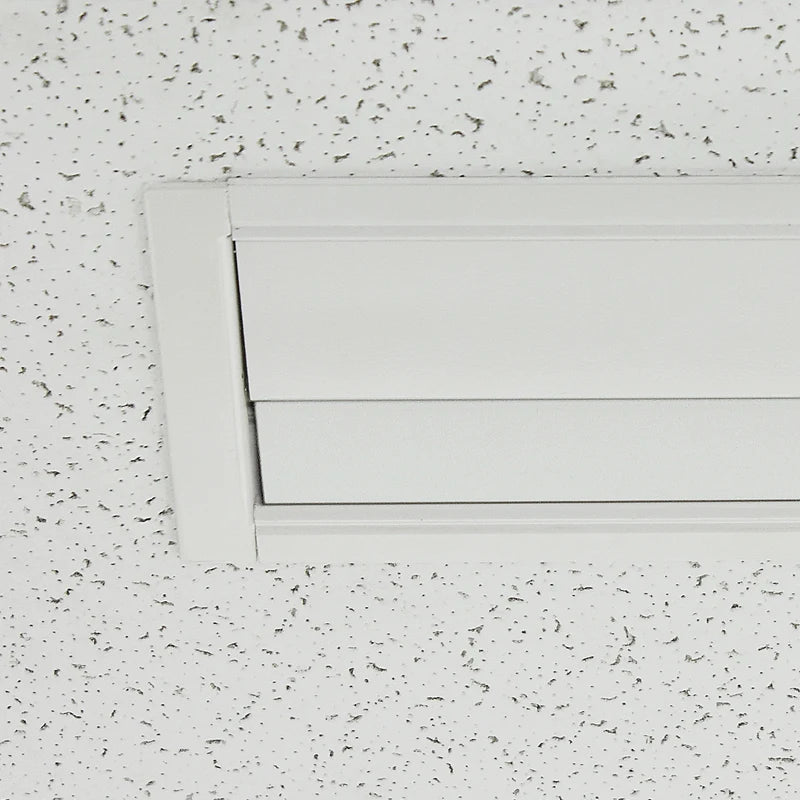

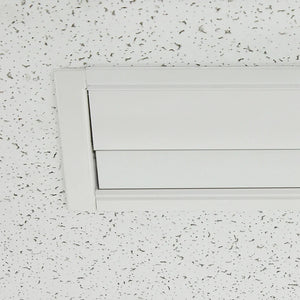

•  Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.

•  Independently motorized ceiling closure panel opens into the case.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage video interface or other controls can be built into the housing for below ceiling access.

•  White case standard, black available upon request

•  Custom sizes available.

•  UL Listed.
