Draper Access V [16:10] Tab-Tensioned ceiling-recessed Electric Screen 198" (105" x 168") 140042U

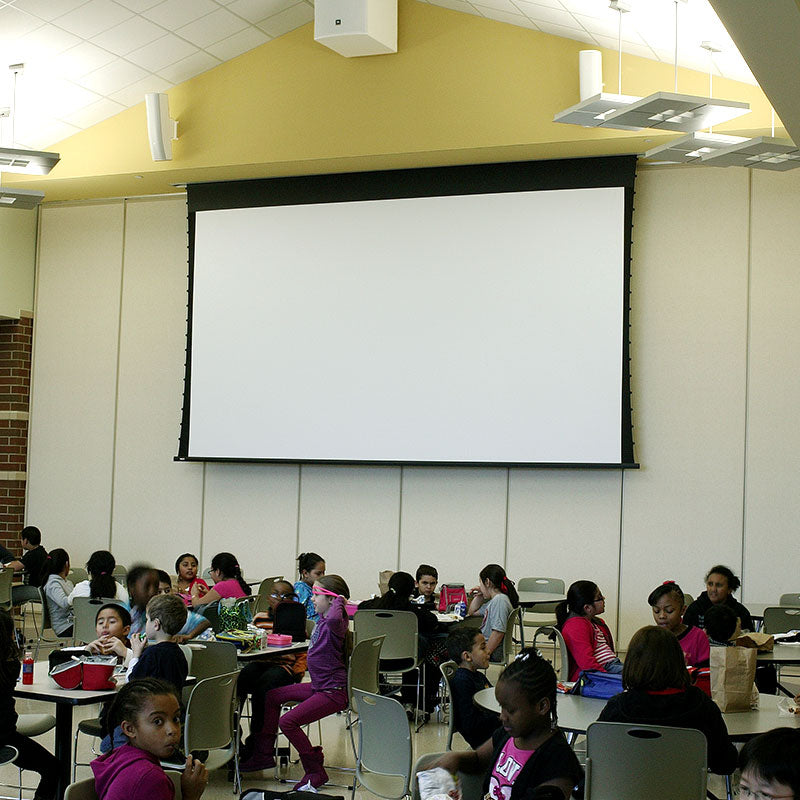

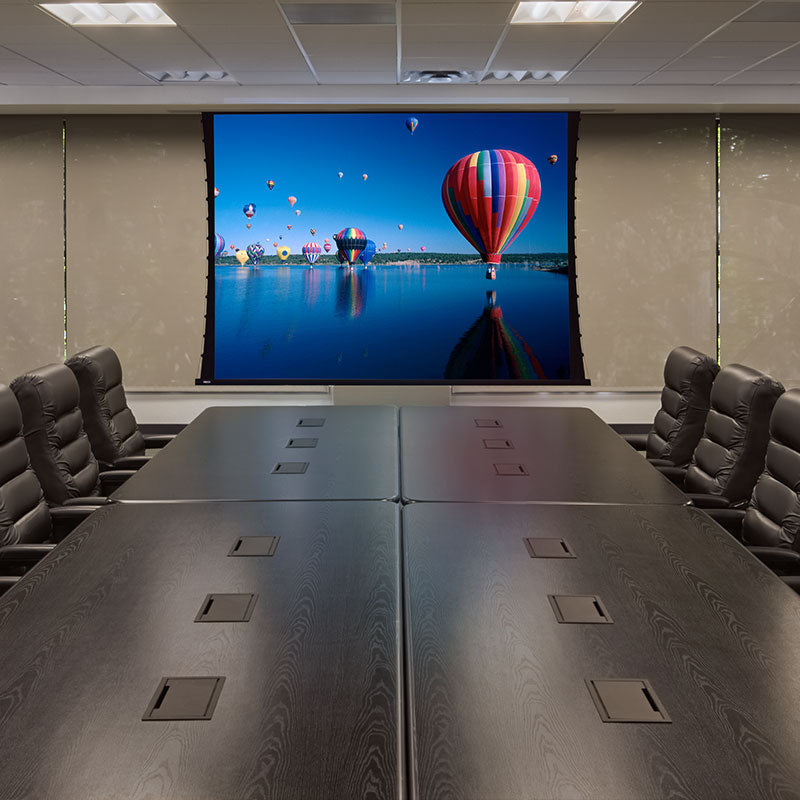

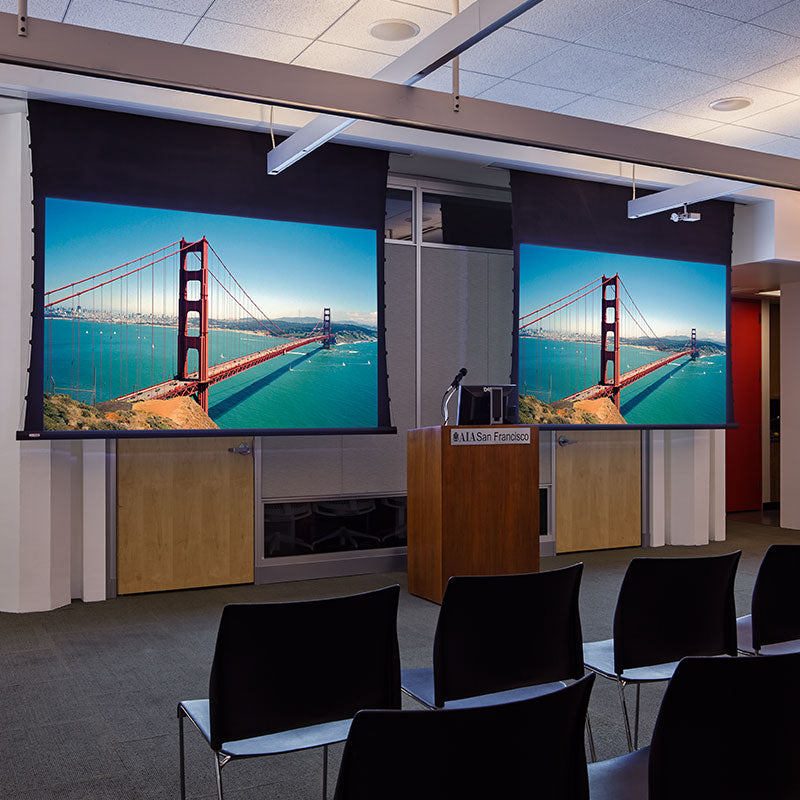

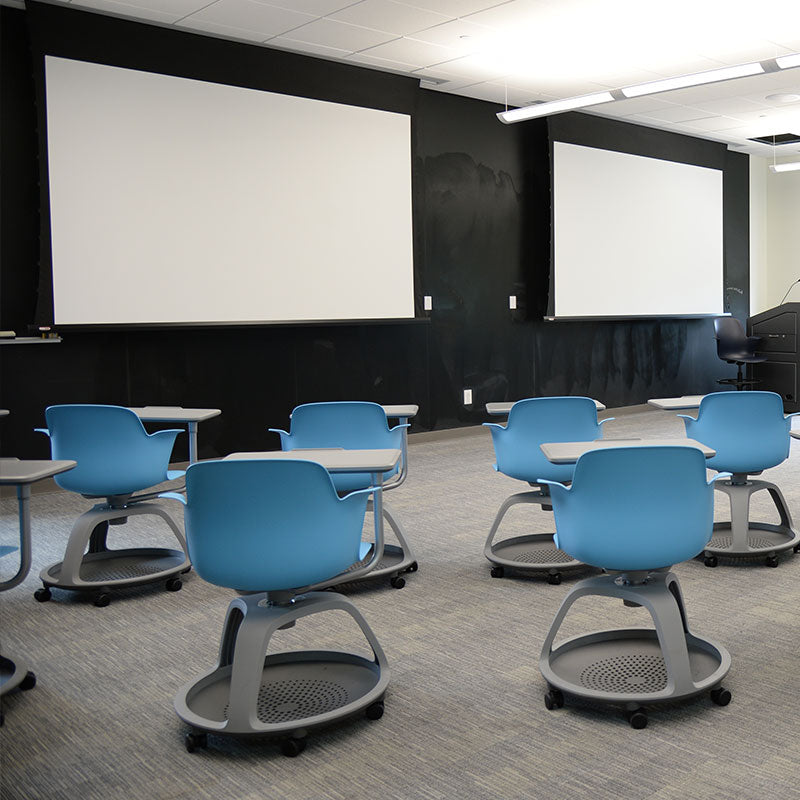

The Draper Access V [16:10] Tab-Tensioned ceiling-recessed Electric Screen 198" (105" x 168") 140042U is a high-quality motorized projection screen designed for professional installations where image quality and convenience are paramount. This screen provides a massive viewing area, measuring 198 inches diagonally, with a 16:10 aspect ratio, making it ideal for large venues such as auditoriums, conference rooms, and home theaters.

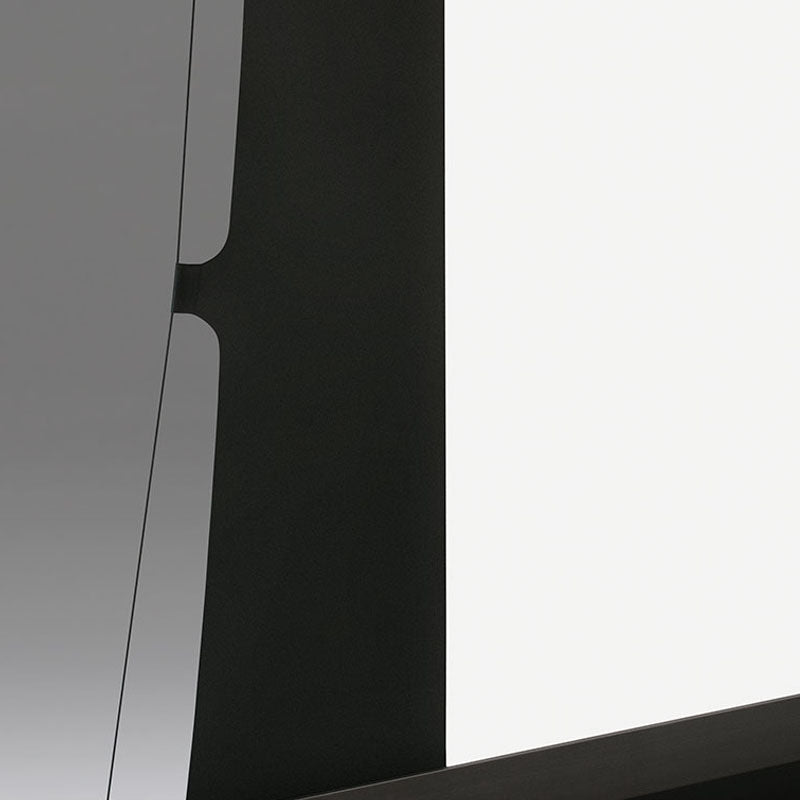

One of the standout features of the Draper Access V is its tab-tensioned design. This mechanism ensures that the screen surface remains flat and taut, eliminating any wrinkles or waves that may distort the projected image. This results in a visually stunning display with excellent clarity and uniformity from edge to edge.

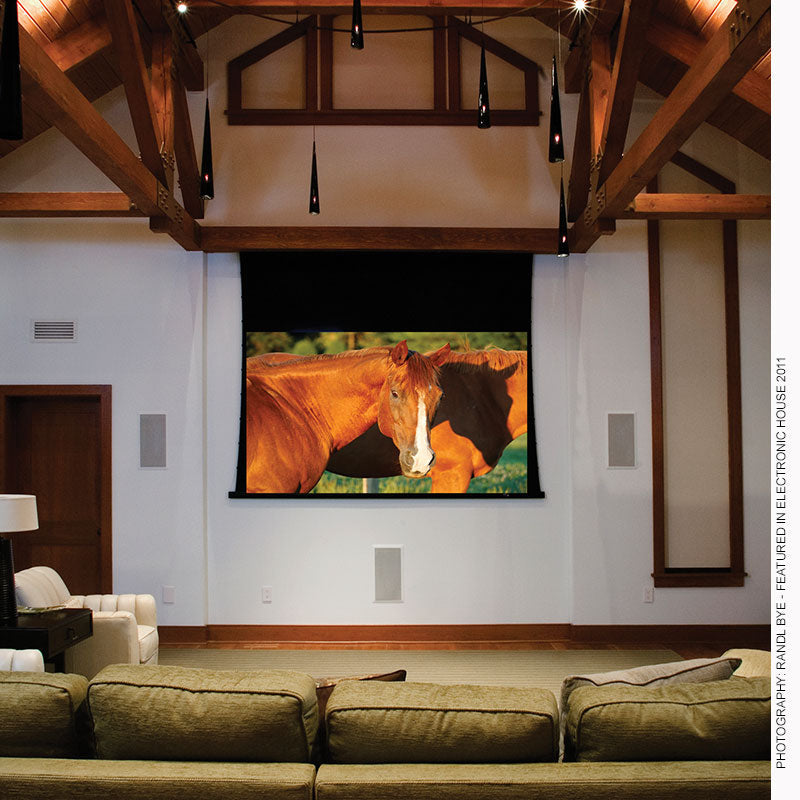

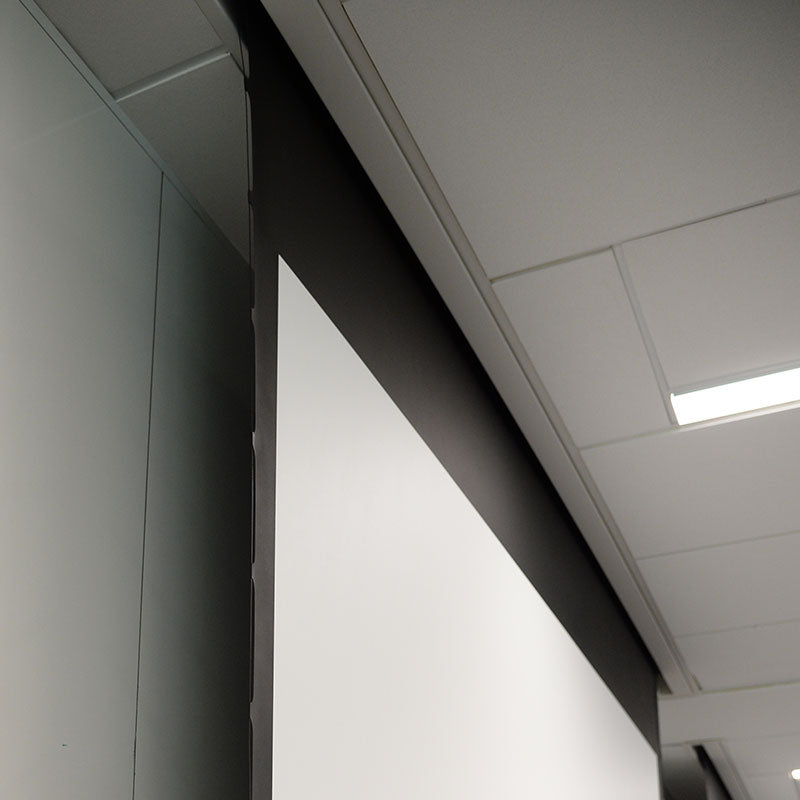

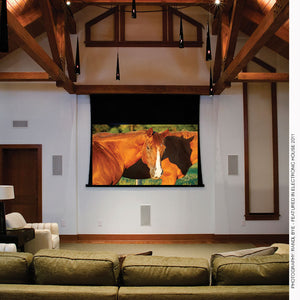

The ceiling-recessed configuration adds to the screen's aesthetics and functionality. When not in use, the screen retracts seamlessly into a hidden recessed ceiling housing, keeping it out of sight and preserving the room's overall decor. This feature is particularly valuable in environments where space is limited or a clean, clutter-free appearance is desired.

The electric motorized operation allows for effortless control of the screen. With the push of a button or via integration with a compatible control system, the screen smoothly lowers or raises into position, providing a convenient and hassle-free user experience. The motor is designed to operate quietly, ensuring minimal disruption during presentations or movie screenings.

The screen's dimensions are 105 inches in height and 168 inches in width, resulting in an expansive viewing area that accommodates large audiences. The 16:10 aspect ratio is well-suited for modern widescreen content, including presentations, videos, and movies, providing a cinematic experience with optimal image proportions.

The Draper Access V [16:10] Tab-Tensioned ceiling-recessed Electric Screen 198" (105" x 168") 140042U is a top-of-the-line projection screen that combines exceptional image quality, ease of use, and discreet installation. Whether you're hosting a corporate event, delivering a presentation, or enjoying a movie night at home, this screen delivers an immersive and visually stunning display that enhances any viewing experience.

Product Specs

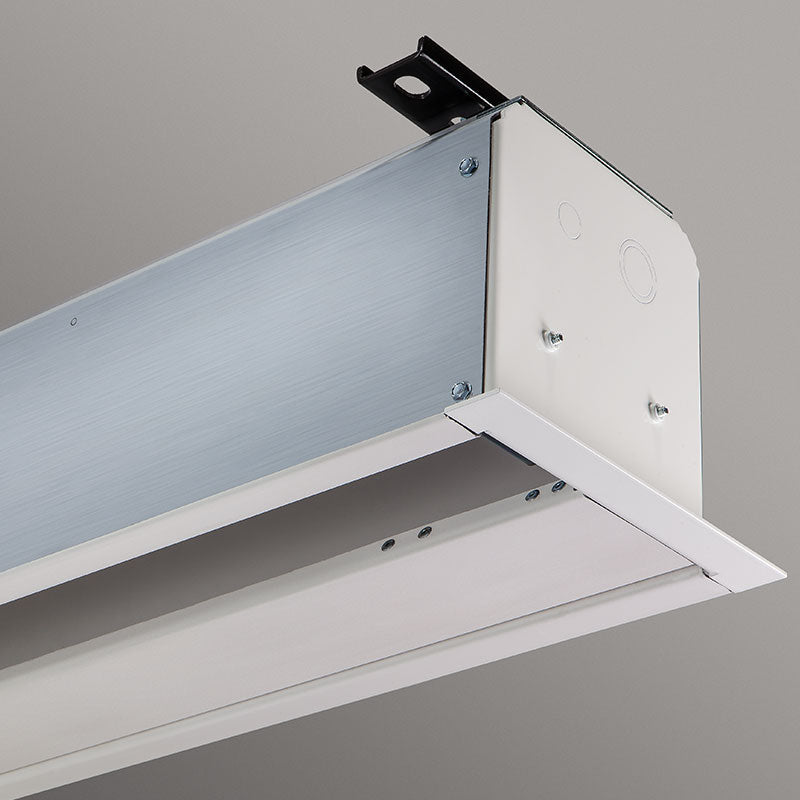

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
